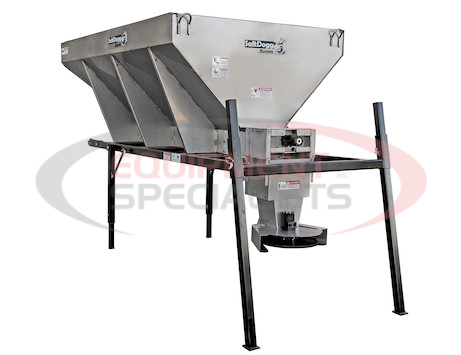

SALTDOGG 2.5 - 5.5 CU YD HYDRAULIC CONVEYOR CHAIN SPREADER

BUYHYDCHHOPPER
BUYHYDCHHOPPER Buyers Buyers

SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader gives contractors and municipalities a heavy duty, durable spreader designed to work with a truck's existing central hydraulic system. The 96 in., 108 in., or 120 in. hoppers are designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight) chassis. It works with bulk salt, bulk sand, or a 50/50 salt/sand mix.

Product Common Use: Salt Spreaders, Municipal Spreaders, Road and Highway Maintenance

Capacity: 2.5-5.5 Cubic Yard
Fits: Dump Bodies and Flatbeds with a 15,000 lb to 19,500 lb GVW
Material: Bulk Salt, Bulk Sand, 50/50 Salt/Sand Mix

Please contact us for more information about this product.

Request a Quote
Terms and Conditions
Share this product:

2.5 - 5.5 Cubic Yard Hydraulic Chain Spreader

Buyers Products SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader gives contractors and municipalities a heavy duty, durable spreader that is powered by a central hydraulic system (not included). The hoppers are designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight) chassis; depending on size of spreader. It works with bulk salt, bulk sand, or a 50/50 salt/sand mix.

The highly corrosion-resistant 304 stainless steel hopper features a fully-welded frame. It comes equipped with two hinged top screens with 1/4 in bars. The 14-1/2 in. wide, high-flow, steel pintle chain conveyor has 1/4 in. crossbars and a stainless steel floor. A stainless steel inverted V reduces stress on the drive line to improve material flow. An adjustable feedgate with lock pin offers additional material flow control.

The conveyor chain is driven by a hydraulic motor with a 20:1 worm gear box. The spinner is powered by a direct mount hydraulic motor. An 18 in. poly spinner casts material 2 ft to 30 ft. The spreader is available with a regular or extended chute. Two adjustable baffles allow you to cater the spread pattern to your use. The chute and spinner assembly flips up or detaches completely, tool-free, for convenient bulk unload, easy servicing, and access to towing.

Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS.

8' MODELS

  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedAdjustable Height
  • Controller TypeNot Included
  • Drive TypeHydraulic
  • Hopper Length96.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors2
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity2.50 yd³
  • Overall Height38.00 "
  • Overall Length116.00 "
  • Overall Width (At Top)58.00 "
  • Hopper Width58.00 "
  • Top ScreenYes
  • Vibrator Included?No
  • Spinner Diameter18.00 "
  • Spreading Width Range2 To 40 '
  • Feed MechanismConveyor Chain
  • Feed Mechanism214 1/2 in. Pintle Chain with 1/4in. Bars
  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedAdjustable Height
  • Controller TypeNot Included
  • Drive TypeHydraulic
  • Hopper Length96.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors2
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity3.50 yd³
  • Overall Height46.00 "
  • Overall Length116.00 "
  • Overall Width (At Top)70.00 "
  • Hopper Width70.00 "
  • Top ScreenYes
  • Vibrator Included?No
  • Spinner Diameter18.00 "
  • Spreading Width Range2 To 40 '
  • Feed MechanismConveyor Chain
  • Feed Mechanism214 1/2 in. Pintle Chain with 1/4in. Bars

    • 9' MODELS

  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedAdjustable Height
  • Controller TypeNot Included
  • Drive TypeHydraulic
  • Hopper Length108.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors2
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity2.80 yd³
  • Overall Height38.00 "
  • Overall Length128.00 "
  • Overall Width (At Top)58.00 "
  • Hopper Width58.00 "
  • Top ScreenYes
  • Vibrator Included?No
  • Spinner Diameter18.00 "
  • Spreading Width Range2 To 40 '
  • Feed MechanismConveyor Chain
  • Feed Mechanism214 1/2 in. Pintle Chain with 1/4in. Bars
  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedAdjustable Height
  • Controller TypeNot Included
  • Drive TypeHydraulic
  • Hopper Length108.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors2
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity4.00 yd³
  • Overall Height46.00 "
  • Overall Length128.00 "
  • Overall Width (At Top)70.00 "
  • Hopper Width70.00 "
  • Top ScreenYes
  • Vibrator Included?No
  • Spinner Diameter18.00 "
  • Spreading Width Range2 To 40 '
  • Feed MechanismConveyor Chain
  • Feed Mechanism214 1/2 in. Pintle Chain with 1/4in. Bars
  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedAdjustable Height
  • Controller TypeNot Included
  • Drive TypeHydraulic
  • Hopper Length108.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors2
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity5.00 yd³
  • Overall Height52.00 "
  • Overall Length128.00 "
  • Overall Width (At Top)70.00 "
  • Hopper Width70.00 "
  • Top ScreenYes
  • Vibrator Included?No
  • Spinner Diameter18.00 "
  • Spreading Width Range2 To 40 '
  • Feed MechanismConveyor Chain
  • Feed Mechanism214 1/2 in. Pintle Chain with 1/4in. Bars

    • 10' MODELS

  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedAdjustable Height
  • Controller TypeNot Included
  • Drive TypeHydraulic
  • Hopper Length120.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors2
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity3.20 yd³
  • Overall Height38.00 "
  • Overall Length140.00 "
  • Overall Width (At Top)58.00 "
  • Hopper Width58.00 "
  • Top ScreenYes
  • Vibrator Included?No
  • Spinner Diameter18.00 "
  • Spreading Width Range2 To 40 '
  • Feed MechanismConveyor Chain
  • Feed Mechanism214 1/2 in. Pintle Chain with 1/4in. Bars
  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedAdjustable Height
  • Controller TypeNot Included
  • Drive TypeHydraulic
  • Hopper Length120.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors2
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity4.50 yd³
  • Overall Height46.00 "
  • Overall Length140.00 "
  • Overall Width (At Top)70.00 "
  • Hopper Width70.00 "
  • Top ScreenYes
  • Vibrator Included?No
  • Spinner Diameter18.00 "
  • Spreading Width Range2 To 40 '
  • Feed MechanismConveyor Chain
  • Feed Mechanism214 1/2 in. Pintle Chain with 1/4in. Bars
  • Chute Primary Material304 Stainless Steel
  • ChuteStandardAdjustableExtendedAdjustable Height
  • Controller TypeNot Included
  • Drive TypeHydraulic
  • Hopper Length120.00 "
  • Hopper Material304 Stainless Steel
  • Number Of Motors2
  • Spinner MaterialPolyurethane
  • Works With Bagged #1 Rock SaltYes
  • Works With Bulk SaltYes
  • Works With Bulk SandYes
  • Works With Salt / Sand MixYes
  • Capacity5.50 yd³
  • Overall Height52.00 "
  • Overall Length140.00 "
  • Overall Width (At Top)70.00 "
  • Hopper Width70.00 "
  • Top ScreenYes
  • Vibrator Included?No
  • Spinner Diameter18.00 "
  • Spreading Width Range2 To 40 '
  • Feed MechanismConveyor Chain
  • Feed Mechanism214 1/2 in. Pintle Chain with 1/4in. Bars

    • Quality Construction

    Hopper and fully welded frame made of high quality 304 stainless steel for long lasting corrosion protection

    Prevent Damage

    Stainless steel inverted V improves flow and reduces stress on the drive line

    Reliable Operation

    Hydraulic powered drive with two motors for independent conveyor and spinner operation

    Wide Broadcast

    18 in. poly spinner broadcasts up to 30 ft with two chute baffles to adjust the spread pattern to your use

    Spreading Material

    Handles bulk salt, bulk sand, or a 50/50 salt/sand mix

    Available Controls

    Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS.

    Capacity 2.5 cu yd or 2.8 cu yd or 3.2 cu yd or 3.5 cu yd or 4.0 cu yd or 4.5 cu yd or 5.0 cu yd or 5.5 cu yd
    Length 8 ft or 9 ft or 10 ft
