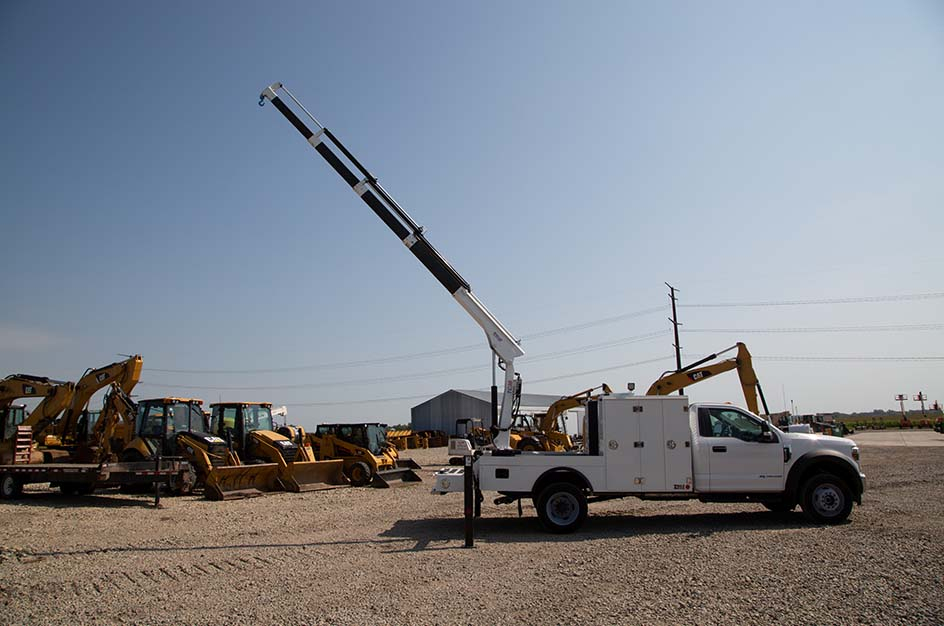

Get more productivity from your mechanic truck or service truck by adding a Stellar Service Truck Crane. Models are available for nearly any truck body, and the reach, power and performance of a Stellar telescopic crane adds significant versatility to help you get more done in less time.

Stellar’s Service Truck Crane lineup is large, so you can find the ideal model to meet your needs. When the working conditions call for rugged, nonstop performance, Stellar Hydraulic Cranes are up to the task. For lighter duty, count on Stellar Electric Cranes and Electric-Hydraulic Cranes. When space is limited, compact Stellar T-Boom Cranes provide the reach you need.

Learn more

Stellar - Products

Stellar Industries Electric Cranes

Stellar Electric Cranes

For the ultimate in economy, Stellar Electric Cranes are engineered for highly efficient performance. An aluminum model is also available for added corrosion resistance, plus it weighs less for increased overall payload.

 View Now

Stellar Electric-Hydraulic cranes

Stellar Electric-Hydraulic cranes

For light-duty applications, both electric and hydraulic versions provide plenty of power and capacity, with horizontal reaches ranging from 15' to 21' and lift capacities.

Stellar Mechanic Trucks

With top-quality engineering, materials and construction, the Stellar lineup of mechanic trucks is built for productivity and long-term reliability.


Stellar Toolboxes

Stellar Toolboxes

Stellar’s array of hard-wearing, long-lasting drawer sets offers secure, convenient organization and fast, easy access to your tools. From different drawer sizes to a wide range of configuration options, you’ll be more productive with a custom drawer system that meets your exact needs.

 View Now

Stellar Lube Skids & Systems

Stellar Lube Skids & Systems

Stellar Lube Skids reduce downtime and save money by letting you perform lube services in the field as an affordable alternative to a dedicated lube truck. Mobile and permanent lube skid options are available, along with a range of new and waste oil tank capacities.

Stellar Electric Cranes


Electric Cranes save money and reduce noise because they can be operated without the engine on, lowering fuel costs and vehicle wear. Because you don’t have to maintain separate hydraulic components, you save on labor time and parts. You can also lower chassis costs because Stellar Electric Cranes let you use a gas or diesel chassis without the need to add a power take-off (PTO) and pump to the chassis or a transmission that can handle the PTO and pump. Make it an electric crane truck.

All Electric Cranes are built with Stellar’s commitment to quality components and precision assembly for years of efficient performance. Municipalities, water works, construction companies, public utilities and many others choose Electric Crane Trucks for light-duty jobs where the service crane isn’t used day in and day out. For more heavy-duty applications with constant use, choose a Stellar Hydraulic Service Crane.

Stellar EC2000

Stellar EC2000

Max Capacity: 2,000 lbs
Horizontal Reach: 7 ft

Request a Quote

Stellar EC3200

Stellar EC3200

Max Capacity:  3,200 lbs
Horizontal Reach:  15 ft

Request a Quote

Stellar EC4000

Stellar EC4000

Max Capacity:  4,000 lbs
Horizontal Reach:  16 ft or 20 ft

Request a Quote

Stellar EC5000

Stellar EC5000

Max Capacity:  5,000 lbs
Horizontal Reach:  20 ft

Request a Quote

Stellar Electric-Hydraulic Cranes


Because Stellar Electric-Hydraulic Cranes handle a wide range of lifting needs for municipalities, water works, construction companies, public utilities and many other applications, you can take several aspects into consideration when choosing the service crane that’s right for your mechanic or service truck.

Electric-Hydraulic Cranes save money and reduce noise because they can be operated without the engine on, lowering fuel costs and vehicle wear. You can also lower chassis costs because Stellar Cranes with an electric power source let you use a gas or diesel chassis without the need to add a power take-off (PTO) and pump to the chassis or a transmission that can handle the PTO and pump. Because electric motors aren’t built for constant use, electric cranes are a great choice for light-duty jobs where the service crane is used for less time and isn’t used day in and day out.

Stellar 3315

Stellar 3315

Max Capacity: 3,200 lbs
Horizontal Reach: 15 ft

Request a Quote

Stellar 4421

Stellar 4421

Max Capacity:  4,000 lbs
Horizontal Reach:  21 ft

Request a Quote

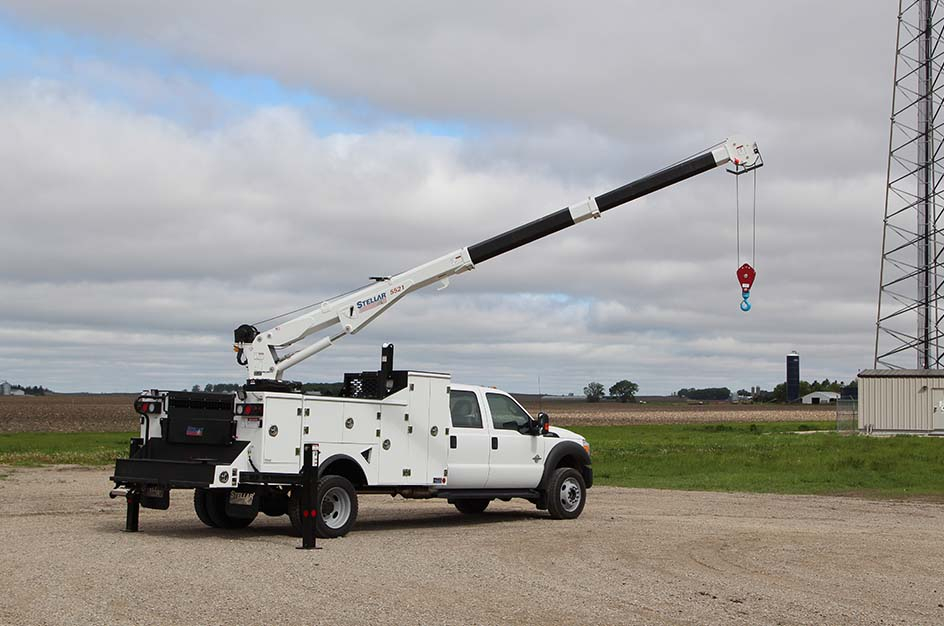

Stellar 5521

Stellar 5521

Max Capacity:  5,000 lbs
Horizontal Reach:  21 ft

Request a Quote

Stellar 6521

Max Capacity:  6,000 lbs
Horizontal Reach:  21 ft

Request a Quote

Stellar Mechanic Trucks


Constructed of the toughest materials and engineered to last and last, Stellar’s exceptional-quality mechanic trucks help you raise productivity and get the job done. From streamlined truck bodies that increase payload to durable construction that withstands the most demanding working conditions, all Stellar Mechanic Trucks improve efficiency, enhance organization and add convenience to your workday, no matter the task at hand.

The Stellar® TMAX™ lineup of mechanic trucks has a long-standing reputation for quality, and both steel and lighter-weight aluminum models are available. Whether you choose steel or aluminum, every TMAX Mechanic Truck is built for years of hard work with corrosion protection, engineering that reduces vibration and keeps stress off compartment doors, and a two-part polyurethane enamel finish to protect against weather and debris.

From light duty jobs to heavy duty jobs and everything in between, an upfitted mechanic truck from Stellar can exceed your needs and surpass your expectations.

Stellar TMAX™ 16K Mechanic Truck

Crane Max Capacity: 4,000 lbs
Body Lengths: 9' or 11' aluminum bodies
Compatible Cranes:
Electric Cranes: EC3200, EC4000-16, EC4000-20
Electric-Hydraulic Cranes: 3315 & 4421

Request a Quote

Stellar TMAX™ 30K Mechanic Truck

Crane Max Capacity: 6,000 lbs
Body Lengths: 9' or 11' steel or aluminum bodies
Compatible Cranes:
Electric Cranes:
EC3200, EC4000-16, EC4000-20, EC5000
Electric-Hydraulic Cranes: 3315, 4421, 5521, 6521


Request a Quote

Stellar American Eagle Toolboxes


Stellar offers hardworking toolboxes for hardworking trucks. Stellar’s full line of custom-made service truck tool storage systems (formerly American Eagle branded) are the most rugged and dependable products available in the North American market today. Like our trucks these custom sizes and configurations of toolbox systems are built to the highest industry standards to maximize your productivity.

Stellar’s Service Truck Tool Box Systems are made incredibly tough to withstand abuse on the most demanding jobsites, day in and day out. Heavy-duty, 500-lb slide sets are used across the entire size range of drawers to ensure a solid, durable platform to carry your tools and components. From easy-to-use handles to a range of configurations, Stellar’s Service Truck Tool Boxes have you covered for whatever your workday throws your way.

Stellar Heavy-Duty

Stellar Heavy-Duty

500-lb capacity per drawer

Request a Quote

Stellar Light-Duty

Stellar Light-Duty

250-lb capacity per drawer

Request a Quote

Stellar Bolt Bins

Stellar Bolt Bins

Convenient storage for nuts, bolts, fittings, and more

Request a Quote

Stellar Lube Skids & Systems


Preventive maintenance is essential for heavy equipment reliability, but it can also cost you valuable time and lost productivity. Stellar® Lube Skids reduce downtime and save money by letting you perform lube services in the field as an affordable alternative to a dedicated lube truck.

Lube skids from Stellar are engineered for easy installation on mechanic trucks, service trucks and vans to increase your field service capabilities. You can choose from permanent and mobile lube skids with a range of capacities as well as different configurations for oil tanks, waste oil storage, hose reels and more, making it easy to get the lube system that works best for you. All units come complete with hardware to mount and plumb. Stellar also offers a range of fuel and lube trailers.

Stellar LM90

Stellar LM90

Mobile lube skid with a 45-gallon new oil tank and 45-gallon waste oil tank

Request a Quote

Stellar LM110

Stellar LM110

Mobile lube skid with a 55-gallon new oil tank and 55-gallon waste oil tank

Request a Quote

Stellar LM120

Stellar LM120

The convenience of two 40-gallon new oil tanks and a 49-gallon waste oil tank

Request a Quote

Stellar LM160

Stellar LM160

Meet more demands with two 40-gallon oil tanks and an 80-gallon waste oil tank

Request a Quote

Stellar LM200

Stellar LM200

High-capacity, all-steel lube skid with three 40-gallon oil tanks and an 80-gallon waste oil tank

Request a Quote

Stellar LM300

Stellar LM300

Our highest capacity steel lube skid with four 50-gallon oil tanks and a 100-gallon waste oil tank
