Tommy Gate Flatbed and Van Tuckunder Series: TKL
TGTKL
TKL models feature a single-cylinder, power-down, highly efficient design and accommodates bed heights from 33 to 47 inches. Lightweight and durable, the TKL combines sleek modern engineering and 2500lbs. of lifting capacity and has applications to fit all major flatbed, stake and van bodies.
Please contact us for more information about this product.
Request a QuoteShare this product:
Tommy Gate Flatbed and Van Tuckunder Series: TKL Specifications
Tommy Gate Flatbed and Van Tuckunder Series: TKL Platforms

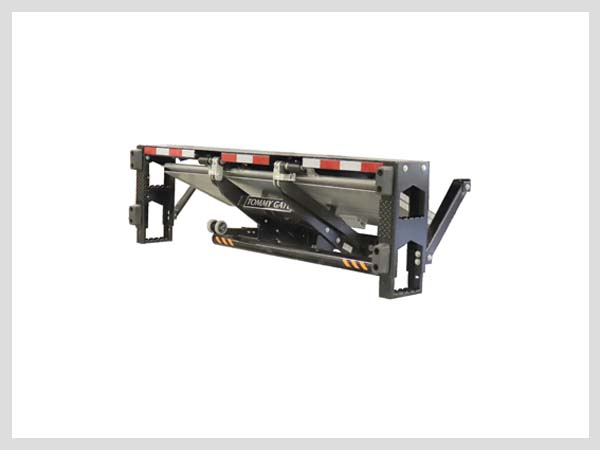

EA33
2-piece, 33-inch-deep, plus a 4" front and 4" back taper, extruded aluminum platform (w/ 17" base and 16" flipper)
EA37
2-piece, 37-inch-deep, plus a 4" front and 4" back taper, extruded aluminum platform (w/ 19" base and 17 1/2" flipper)
EA41
2-piece, 41-inch-deep, plus a 4" front and 4" back taper, extruded aluminum platform (w/21 1/2" base and 19 1/2" flipper)
Tommy Gate Flatbed and Van Tuckunder Series: TKL Features
Low Profile Fixed Toggle Control
A low-profile control with five-minute inactivity shut-off
Thermal Protected Motor
Electric motor with thermal shut off
Circuit Breaker
Protects against excess current from an overload or short circuit
Platform Power Down
Offers consistent platform action both upwards and downwards
Standard Power Cable
38-foot cable, 2-guage, full-length power and ground
Hydraulic Locks
Hands-free latching for platform storage
Platform Flags
Reflective flags, mounted under platform
Tommy Gate Flatbed and Van Tuckunder Series: TKL Available Options
Bumper Bar
A low, full-width steel bar mounted under the liftgate
Split Cart Stops
Secure wheeled cargo (aluminum platforms only, loses 10-inches of loading depth when deployed)
Auxiliary Battery Box
Provides adequate power on longer straight truck and trailer applications
24-Volt System
Compatible with vehicles running a 24-volt system
In-cab, shut-off switch
Enables power to be disabled from within the truck cab
License Plate Mount
Bracket mount with light
Combo, LED Light Kit
Includes 2, combination, recessed lights in dock extension side steps that serve 4 functions (tail, turn, stop, and reverse)
Dual controls
Low-profile, fixed control + remote pendant control
Extended Power Cable
41-foot cable, 2-guage, full-length power and ground
In-Line Power Shut Off
Disables power to the liftgate along the power line
Remote pendant control mounting kit
Bracket and hook to store pendant control inside the vehicle (pendant sold separately)
- Structural steel construction with zinc prime & powder coated finish
- interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
- Interior height is 72″ high
- Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
- Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
- Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
- Rear corner posts are constructed of 7GA steel
- Roofs are constructed of 12GA steel with a 6″ peak
- Lockable security-style doors with 3″ x 3″ supports
- Standard 6″ steel ground rollers
