Thieman Conventional Liftgate WT 20EST
TWT20

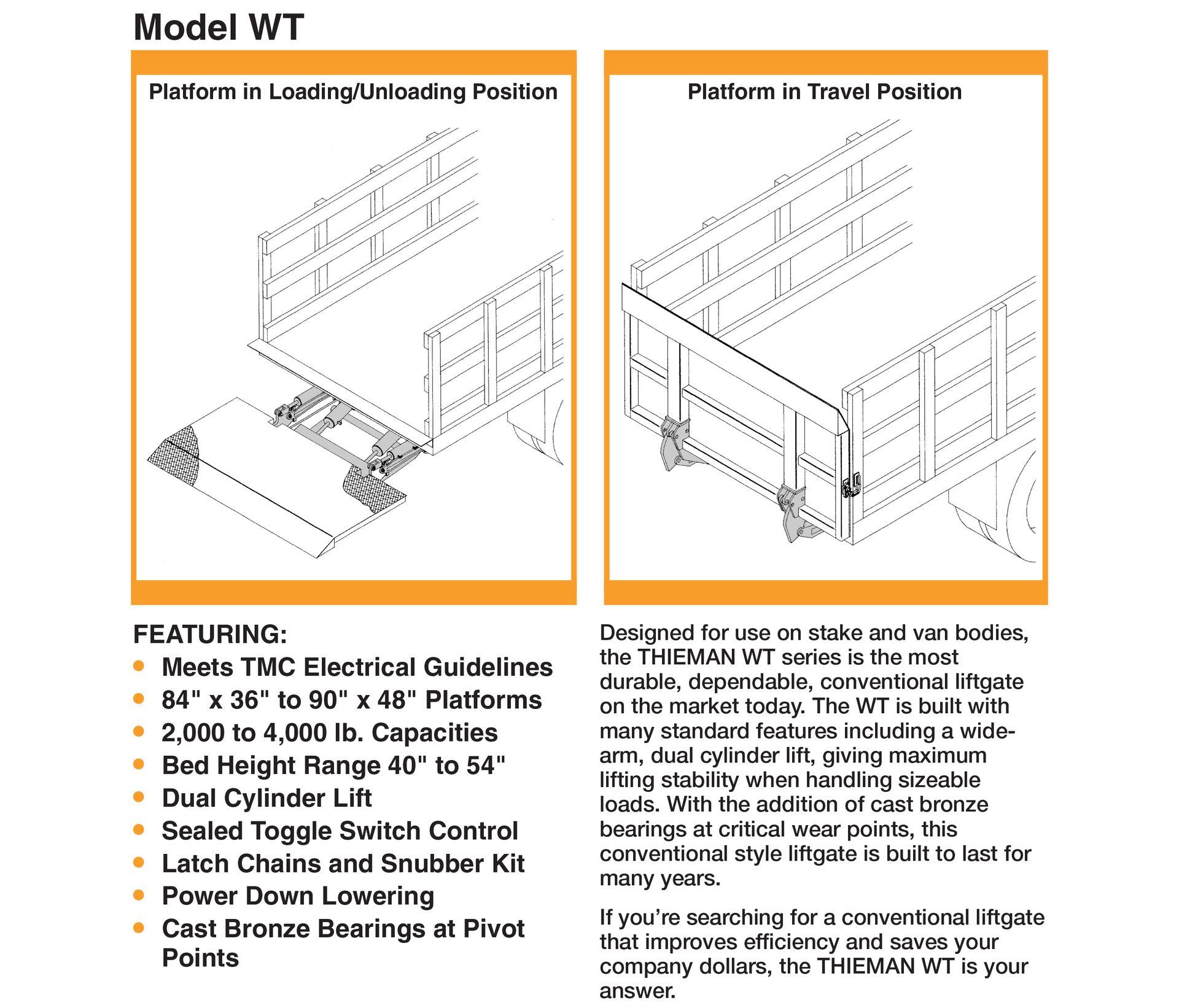

Designed for use on stake and van bodies, the THIEMAN WT series is the most durable, dependable, conventional liftgate on the market today. The WT is built with many standard features including a widearm, dual cylinder lift, giving maximum lifting stability when handling sizeable loads. With the addition of cast bronze bearings at critical wear points, this conventional style liftgate is built to last for many years.
If you’re searching for a conventional liftgate that improves efficiency and saves your company dollars, the THIEMAN WT is your answer.
Please contact us for more information about this product.
Request a QuoteShare this product:
Thieman WT 20EST Liftgate Specifications
Thieman WT 20EST Liftgate Features
- Structural steel construction with zinc prime & powder coated finish
- interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
- Interior height is 72″ high
- Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
- Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
- Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
- Rear corner posts are constructed of 7GA steel
- Roofs are constructed of 12GA steel with a 6″ peak
- Lockable security-style doors with 3″ x 3″ supports
- Standard 6″ steel ground rollers
