Thieman Stowaway Liftgate M 20ET
TM20ET
The THIEMAN M Series Stowaway is the industry standard for handling medium-duty loads.

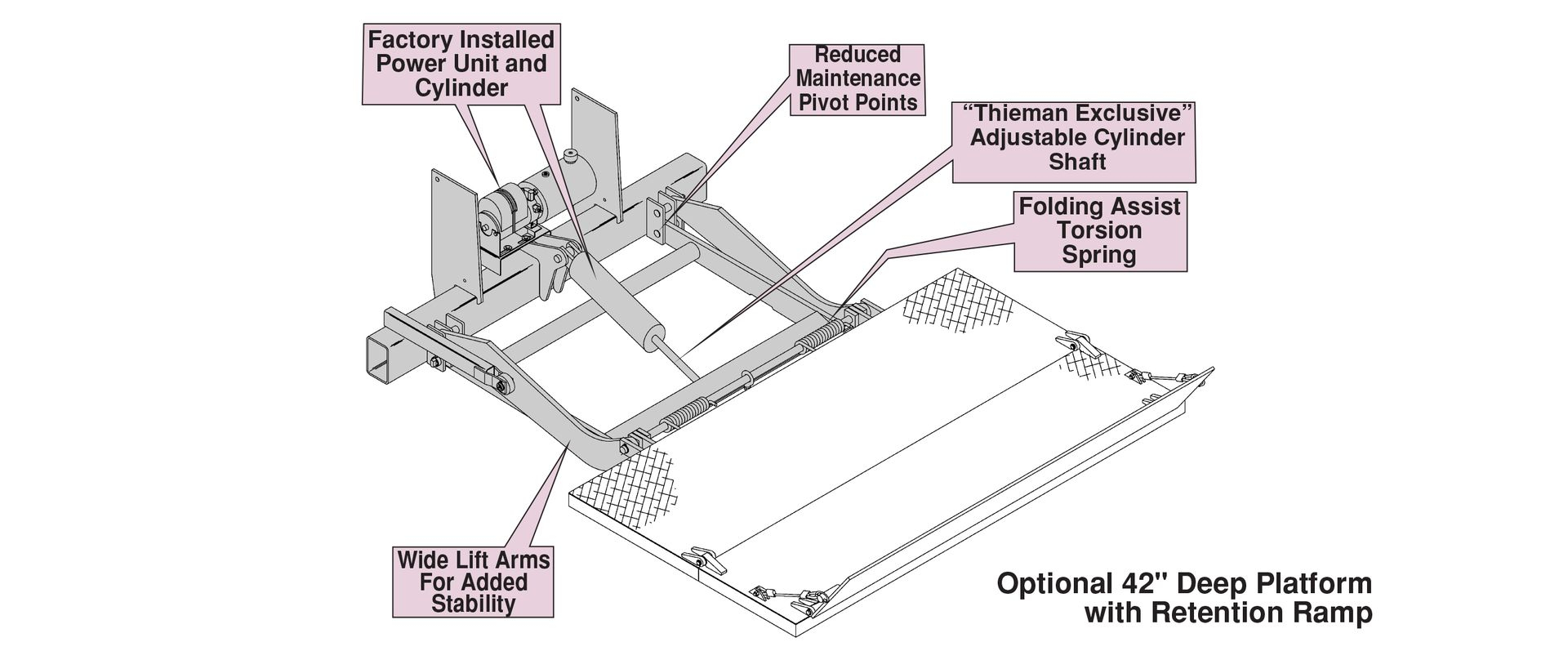

Designed for fast and easy installation, the M16/20/25/30 includes a pre-assembled pump and cylinder. With the dual torsion spring assist, the operator can fold and unfold the platform with much less effort.
With its durable design and many standard features, the THIEMAN M Series is the choice among general purpose Stowaways.
Please contact us for more information about this product.
Request a QuoteShare this product:
Thieman M 20ET Liftgate Specifications
Thieman M 20ET Liftgate Features
- Structural steel construction with zinc prime & powder coated finish
- interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
- Interior height is 72″ high
- Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
- Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
- Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
- Rear corner posts are constructed of 7GA steel
- Roofs are constructed of 12GA steel with a 6″ peak
- Lockable security-style doors with 3″ x 3″ supports
- Standard 6″ steel ground rollers
