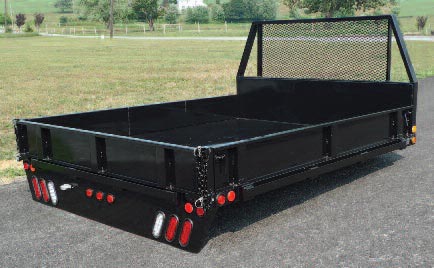

SH Truck Bodies Contractor Pickup Body

SHCPU
SHCPU SH Truck Bodies SH Truck Bodies

Please contact us for more information about this product.

Request a Quote
Terms and Conditions
Share this product:

SH Truck Bodies Contractor Pickup Body Specifications

  • 1/2" x3" Flat long sills

  • 4" structural channel long sills (on cab chassis option)

  • 3" formed channel 12 ga. cross members 12"o.c.

  • 12 ga. diamond plate floor with formed side rails

  • 3/16" Exterior stake pockets with 1/4"x 2" tie rail on both sides

  • Fuel fill cutout in driver's side side - rail

  • tapered rear corners for nice streamlined appearance, and trailer clearance for gooseneck towing

  • 39" high tapered bulkhead with screen window and center top cutout for cab rear stop light

  • LED light kit includes: 6" oval S/T/T and reverse light in rear apron and bulkhead, 3/4" rear and side marker and clearance lights, license plate light, and wiring harness. Meets (FMVSS108)

  • universal box delete mounting kit includes: 4-z mounting brackets with B hardware, fuel fill bracket, mud flap mounting brackets

  • primed and painted black (other colors available)

Standard Length and Approximate Weight in Pounds*

Body Length7’0″ long8’6” long9’6” long11’6” long
84” Wide Single Wheel8499481021N/A
96” Wide Dual Wheel912102211011258
*Length includes bulkhead

  • 1/2" x3" Flat long sills

  • 4" structural channel long sills (on cab chassis option)

  • 3" formed channel 12 ga. cross members 12"o.c.

  • 12 ga. diamond plate floor with formed side rails

  • 3/16" Exterior stake pockets with 1/4"x 2" tie rail on both sides

  • Fuel fill cutout in driver's side side - rail

  • tapered rear corners for nice streamlined appearance, and trailer clearance for gooseneck towing

  • 39" high tapered bulkhead with screen window and center top cutout for cab rear stop light

  • LED light kit includes: 6" oval S/T/T and reverse light in rear apron and bulkhead, 3/4" rear and side marker and clearance lights, license plate light, and wiring harness. Meets (FMVSS108)

  • universal box delete mounting kit includes: 4-z mounting brackets with B hardware, fuel fill bracket, mud flap mounting brackets

  • primed and painted black (other colors available)

  • 12 Ga. x 16" high drop down tailgate with chain adjustment and spring-loaded latches

  • lift out panel between toolbox and rear post

  • Bolt-on 7 Ga. x 16" high rear corner posts with chain slots

  •  2 top-mount steel toolboxes, black, 1 per side

Standard Toolbox Sizes and Approximate Weight* in Pounds

Body Length7’0″ long8’6” long9’6” long11’6” long
Toolbox Size60″ x 16″ x 13″72″ x 16″ x 13″84″ x 16″ x 13″96″ x 16″ x 13″
Lift Out Panel Opening Size9 1/2″15 1/2″15 1/2″27 1/2″
Weight, Single Wheel Width119913571470N/A
Weight, Dual Wheel Width1269143815571775
*Weight includes body

  • 1/2" x3" Flat long sills

  • 4" structural channel long sills (on cab chassis option)

  • 3" formed channel 12 ga. cross members 12"o.c.

  • 12 ga. diamond plate floor with formed side rails

  • 3/16" Exterior stake pockets with 1/4"x 2" tie rail on both sides

  • Fuel fill cutout in driver's side side - rail

  • tapered rear corners for nice streamlined appearance, and trailer clearance for gooseneck towing

  • 39" high tapered bulkhead with screen window and center top cutout for cab rear stop light

  • LED light kit includes: 6" oval S/T/T and reverse light in rear apron and bulkhead, 3/4" rear and side marker and clearance lights, license plate light, and wiring harness. Meets (FMVSS108)

  • universal box delete mounting kit includes: 4-z mounting brackets with B hardware, fuel fill bracket, mud flap mounting brackets

  • primed and painted black (other colors available)

  • 12 ga. x 16" high drop down lift out sides with spring loaded latches

  • bolt-on 7 ga. x 16" high rear corner posts with chain slots

  • 12 ga. x 16" high drop down tailgate with chain adjustment and spring loaded latches

Standard Length and Width with Approximate Weight* in Pounds

Body Length7’0″ long8’6” long9’6” long11’6” long
84” Wide Single Wheel109912211309N/A
96” Wide Dual Wheel1180131314071609
*Weight includes body

                          • Structural steel construction with zinc prime & powder coated finish
                          • interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
                          • Interior height is 72″ high
                          • Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
                          • Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
                          • Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
                          • Rear corner posts are constructed of 7GA steel
                          • Roofs are constructed of 12GA steel with a 6″ peak
                          • Lockable security-style doors with 3″ x 3″ supports
                          • Standard 6″ steel ground rollers
