MEYER CROSSFIRE HOPPER SPREADER

MEYCROSSFIRE
MEYCROSSFIRE Meyer Meyer

Better By Design And Backed By A 5-Year Warranty - The Crossfire was designed with extensive input from experienced end users looking for a better insert spreader. Each model has been designed to be easier to use, easier to maintain and easier on your vehicle. The Crossfire Deluxe was designed with an integrated pre-wet system.

Capacity: 1.5 or 2.0 Cubic Yards
Fits: 3/4-Ton Pickup Trucks
Hopper Material: Polyethylene
Spreading Material: Dry, Free-Flowing Rock Salt

Please contact us for more information about this product.

Request a Quote


Share this product:

MEYER Crossfire Insert Spreader Specifications

Crossfire Insert Hopper


Part #:

66263

Hopper Width:

70"

Hopper Depth:

92"

Hopper Height:

37"

Total Height:

53"

Spread Width (min-max):

4' - 30'

Empty Weight:

795 lbs

Max Capacity Load:

1.5 cu. yds

Max Capacity Weight:

4050 lbs

Spreading Material:

Salt/Calcium, Chloride

Warranty:

5 year

Hopper Material:

Poly

Spinner Diameter:

13"

Spinner Material:

Poly

Tire Diameter:

Frame Material:


Part #:

64740

Hopper Width:

70"

Hopper Depth:

92"

Hopper Height:

37"

Total Height:

53"

Spread Width (min-max):

4' - 30'

Empty Weight:

420 lbs

Max Capacity Load:

1.5 cu. yds

Max Capacity Weight:

4050 lbs

Spreading Material:

Salt/Calcium, Chloride

Warranty:

5 year

Hopper Material:

Poly

Spinner Diameter:

13"

Spinner Material:

Poly

Tire Diameter:

Frame Material:


Part #:

66265

Hopper Width:

70"

Hopper Depth:

116"

Hopper Height:

37"

Total Height:

53"

Spread Width (min-max):

4' - 30'

Empty Weight:

974 lbs

Max Capacity Load:

2.0 cu. yds

Max Capacity Weight:

5400 lbs

Spreading Material:

Salt/Calcium, Chloride

Warranty:

5 year

Hopper Material:

Poly

Spinner Diameter:

13"

Spinner Material:

Poly

Tire Diameter:

Frame Material:


Part #:

64742

Hopper Width:

70"

Hopper Depth:

116"

Hopper Height:

37"

Total Height:

53"

Spread Width (min-max):

4' - 30'

Empty Weight:

625 lbs

Max Capacity Load:

2.0 cu. yds

Max Capacity Weight:

5400 lbs

Spreading Material:

Salt/Calcium, Chloride

Warranty:

5 year

Hopper Material:

Poly

Spinner Diameter:

13"

Spinner Material:

Poly

Tire Diameter:

Frame Material:

MEYER Crossfire Insert Spreader Features

Better By Design & Backed By A 5-Year Warranty

The Crossfire was designed with extensive input from experienced end users looking for a better insert spreader. Each model has been designed to be easier to use, easier to maintain and easier on your vehicle. The Crossfire Deluxe was designed with an integrated pre-wet system.

Performance

Built-In Pre-Wetting System

Pre-wetting the material speeds up the melting process and reduces how far the granules bounce once they hit the pavement. Pre-wetting can save up to 30% in material usage.

Designed To Protect Your Truck

Meyer knows your truck is an investment you need to take care of. That’s why we designed the Crossfire to protect your vehicle. The full-width hopper reduces material spillage into the vehicle bed to help prevent corrosion. The hopper and spinner assembly is constructed from polyethylene to eliminate the risk of rust. The Crossfire also conceals all mechanical drives from the elements to keep salt and moisture out and to increase service life.

A Delivery System That Saves Time & Money

The Crossfire’s electrically-driven delivery system consistently delivers the right amount of material when and where you need it. The hopper screen eliminates large chunks and routes ice-melt to the patented tapered-v, while the vibrator helps break up material for even distribution to the full-length auger. The independently controlled spinner manages output to help reduce consumption and lets you precisely spread material exactly where you need it.

Reliability

We designed the Crossfire to be easy and simple to maintain while providing years of trouble-free use. Some of the key built-to-last features found in the Crossfire line includes:

  1. Polyethylene hopper provides years of service and will not rust or corrode.

  2. Heavy-duty 1/2-horsepower auger motor grinds through tough chunks providing an even material flow to the auger.

  3. Low friction poly auger bearing requires no lubrication or maintenance.

  4. Auger assembly can quickly be removed for inspection or maintenance.

  5. The spinner assembly can be removed making it easy to offload material at the end of a long shift.

America's Best Warranty Protection

Adapt these three columns to fit your design need. To duplicate, delete or move columns, select the column and use the top icons to perform your action.

Ease Of Use

Thoughtful Features, Premium Performance

Being out on the road in the snow and ice makes for a long night. That's why we made many of the ease-of-use features that are options on competitive spreaders standard on the Crossfire. These include:

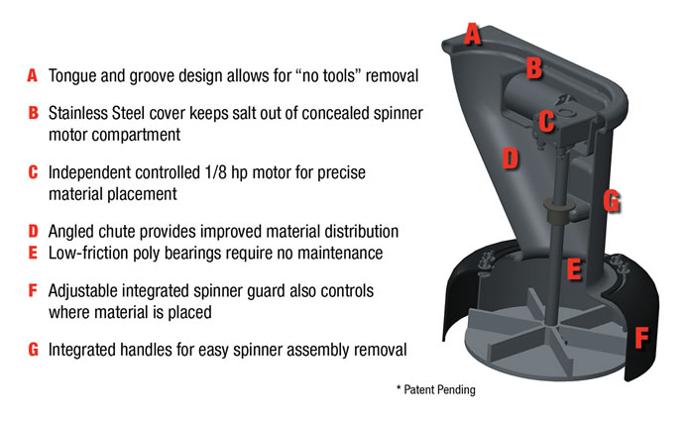

Easy Maintenance Spinner Assembly

The patent-pending spinner assembly comes standard with an 18.5” length or you can upgrade to a 26.5” length.  See why the Crossfire’s spinner assembly is so easy to use and maintain:


Off-Season Storage

The Crossfire stores upright during the off-season, saving valuable storage space.

Work Light

The integrated work light illuminates the spread area and helps during maintenance.

Built-In Tarp Hooks

Built-in tarp hooks are engineered into the hopper to make tarp installation and removal quick and easy.

Recessed Lifting Pockets

Recessed lifting pockets make it easy to install or remove the Crossfire from the vehicle.

Deluxe Controller

The deluxe controller allows the user to adjust the flow of material to their preference.  It also controls the flow of pre-wet liquid material for pre-wetting granular ice control material.  The deluxe controller can detect a jam in the material delivery system and will automatically reverse feed the material in order to clear a jam without user intervention.

Capacity 1.5 cu yd or 2.0 cu yd
Length 6 ft or 8 ft
Controller Standard or Deluxe
