Maxon Tuk-A-Way TE-20 Series
MTE20
The TE-20 Series of Tuk-A-Way® liftgates are the economical choice for general purpose applications requiring 2,000 lbs. lifting capacity. The minimum laden bed height of 36” makes the TE-20 an ideal solution for low bed height applications.
Please contact us for more information about this product.
Request a QuoteShare this product:

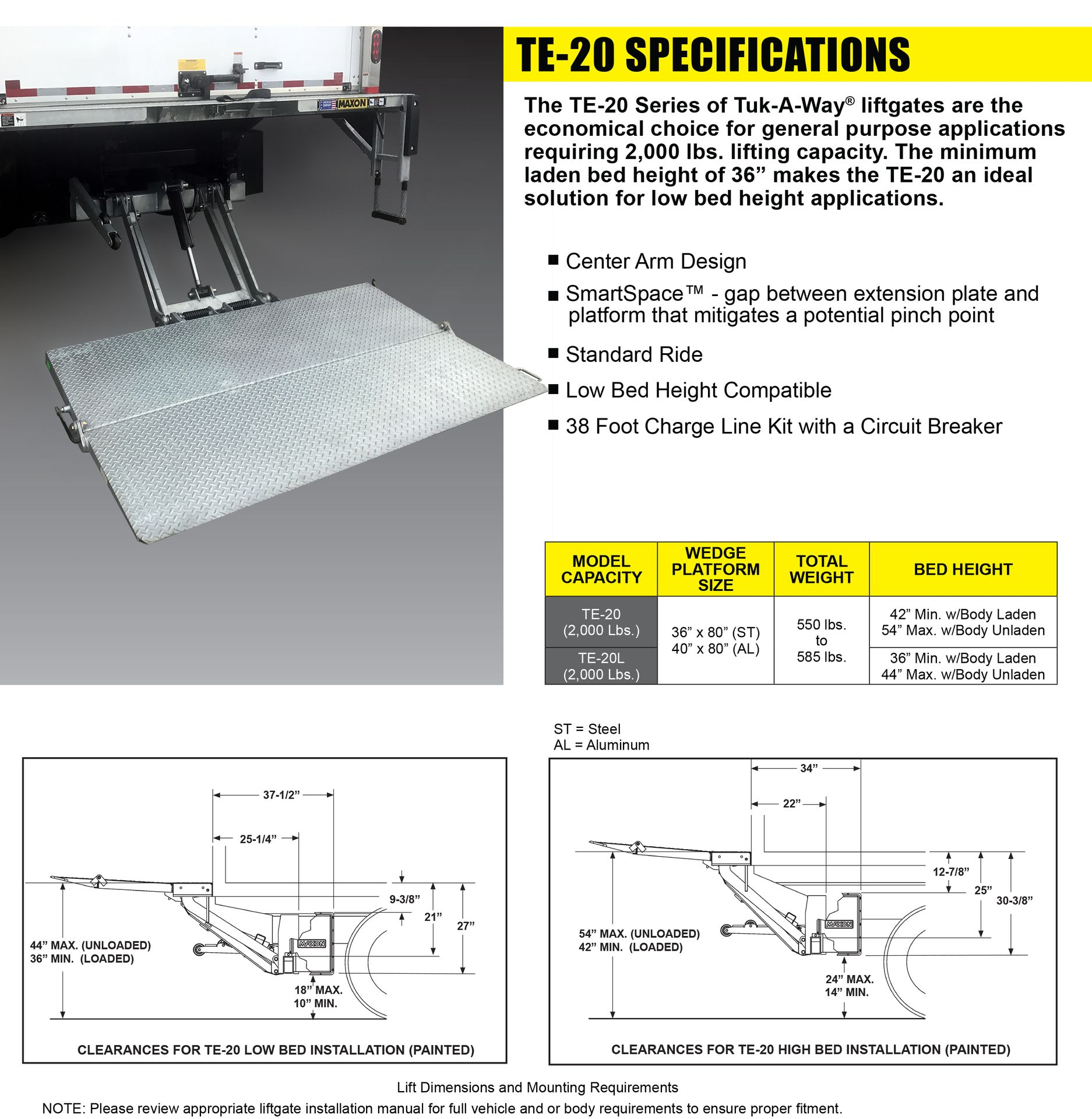

Maxon TE-20 Liftgate Specifications
Maxon TE-20 Liftgate Features
- Structural steel construction with zinc prime & powder coated finish
- interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
- Interior height is 72″ high
- Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
- Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
- Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
- Rear corner posts are constructed of 7GA steel
- Roofs are constructed of 12GA steel with a 6″ peak
- Lockable security-style doors with 3″ x 3″ supports
- Standard 6″ steel ground rollers
