CM Truck Beds AL PL Aluminum Platform
CMALPL
Take uncertainty out of the equation with CM’s AL PL model: Strong and durable yet lightweight and efficient, this aluminum platform body is reliable through-and-through.
Please contact us for more information about this product.
Request a QuoteShare this product:
AL PL Aluminum Platform Body Specifications
| Lengths | 12', 14', 16', 18' |
| Headache Rack | Punched aluminum headache rack |
| Deck | Extruded aluminum floor |
| Frame Rails | 4" Steel channel |
| Rear Skirt | One piece aluminum |
| BP Hitch | ICC optional |
| Side Rails | 3/8"x2" Aluminum extrusion with stake pockets |
| Marker Lighting | Bullet DOT approved LED |

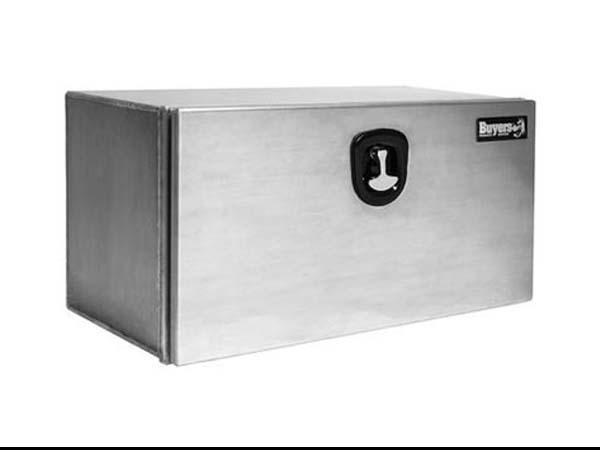

| Toolbox | Optional underbody |
AL PL Aluminum Platform Body Features
Welded bulkhead (41" off deck) with plasma cut "easy view" window grill
Stronger, more durable and integrated into the bed.
Stronger, more durable and integrated into the bed.
Heavy-duty welded bulkhead
Provides extra strength and security. It has less flexibility in the deck, making your hauls more secure.
Provides extra strength and security. It has less flexibility in the deck, making your hauls more secure.
4" structural steel channel frame rails
Our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.
Our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.
3" x 3/8 " Rub rail with stake pockets
These accommodate your straps and give you multiple tie-down points for your hauling jobs.
These accommodate your straps and give you multiple tie-down points for your hauling jobs.

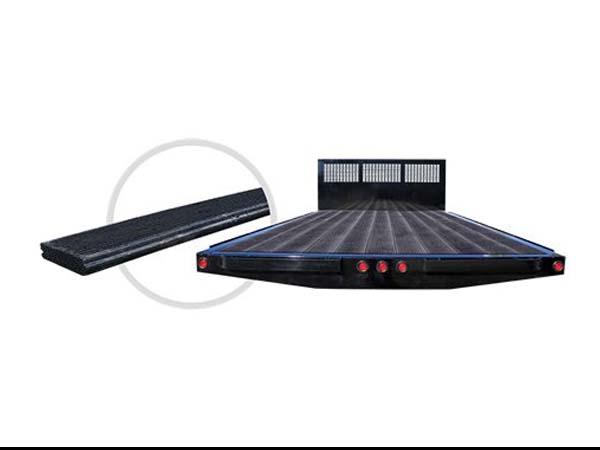

Extruded aluminum floor
CM Truck Beds uses an extruded aluminum decking system, which is stronger than treadplate and withstands the harshest weather conditions, preventing the type of corrosion experienced on many steel bodies.
1/8" steel formed sides and rear
CM provides stronger, more durable, and thicker formed sides and rear than the competition.
CM provides stronger, more durable, and thicker formed sides and rear than the competition.
Modular sealed wiring harness
Our modular sealed wiring harnesses are resistant to corrosion, deterioration and pulling apart, meaning they can withstand the harshest conditions.
3" Steel roll-formed 3/16" channel crossmembers on 12" centers
These are the toughest and most durable work truck subframes.
LED recessed rubber mounted clearance lights
CM’s lights are brighter and use less power than conventional incandescent lights, so your rubber mounted clearance lights will be easily seen and recognized.
CM’s lights are brighter and use less power than conventional incandescent lights, so your rubber mounted clearance lights will be easily seen and recognized.
LED DOT required lighting (clearance and marker lights)
When you are backing up, turning, or hitting your brakes along the road, our LED lights will make your truck bed stand out more.
| CM Body Length | 12ft or 14ft or 16ft or 18ft |
