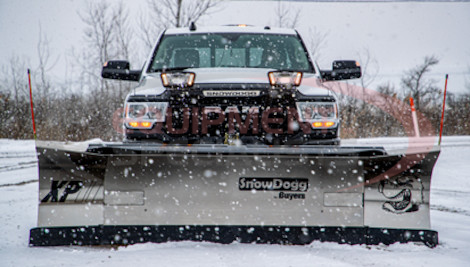

SNOWDOGG XPII SNOW PLOW
BUYXPII
Expandable Wing Plow with RAPIDLINK. The next generation of SnowDogg expanding wing plows is here. Hydraulic Wings Expand from 8' - 10'.
Blade Width: 8' - 10'
Fits: 3/4 Ton with Plow Prep and 1+ Ton Trucks
Popular for: Ford® F-250 and F-350, Chevy® Silverado 2500 and 3500, RAM® 2500 and 3500
Moldboard: Stainless Steel
Please contact us for more information about this product.
Request a QuoteShare this product:
SNOWDOGG XPII Plow Specifications
A Section Subtitle
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.
SNOWDOGG XPII Plow Features
Low Maintenance Blade
The corrosion resistant 304 stainless steel moldboard never needs paint. A robust frame spreads impact across the blade to reduce wear on vital components.
• Aggressive 70° attack angle
• Full-length 2 in. cross tube
• Heavy duty bottom channel
• Nine reinforcing 1/4 in. laser-cut steel ribs
• 1/2 in. cutting edge with integrated curb guards
Ultra Bright LED Light Option
SnowDogg Illuminator™ LED Headlights are brighter and longer lasting than traditional halogens. Active Defrosting Technology™ keeps the Illuminators ice-free even in the biting cold - a central heat source defrosts the entire lens evenly, preventing the streaking or banding that's common with other LED plow lights.
SnowDogg HX High Intensity Halogens are also available.
Clean, Even Scrape & Smooth Trip
The tubular steel Floating A-Frame features a sliding-pin connection so the plow contours the ground for a clean, efficient scrape. Outstanding performance at any mounting height. Six stress-optimized trip springs protect your equipment from hidden curbs and obstacles. A heavy duty shock kit is also available (see "Accessories" below) to cushion the trip for an even smoother ride.
Quick & Easy Attachment
Mount and dismount in one minute or less with the new RapidLink™ Attachment System.
• Center-mounted drop foot props up your plow on any surface with the pull of a handle
• Hydraulically powered Jack Switch™ adjusts your plow's mounting height on the fly so it's easy to line up with your vehicle
• Connects to your truck with a single driver side foot pedal
Components You Can Rely On
From the heavy duty lift arm to the fully enclosed hydraulic power unit, the SnowDogg XPII is built to endure whatever winter throws at you.
• Powerful 2 in.lift cylinder
• Over-sized 1-1/2 in. angle cylinders
• Fully enclosed 2 HP hydraulic power unit
• SAE standard cartridge valves and hefty 3/8 in. rubber hoses
Hydraulically Expanding Wings
Extend your blade from 8 feet to a 10 foot scoop at the press of a button. The versatile plow's powerful stacking and windrowing are ideal for quickly clearing large lots.
INCLUDED ACCESSORIES:
Intuitive in-cab controls are simple to use even with gloves on. The backlit, one-handed controller puts all plows functions in the palm of your hand.
Other standard accessories:
• Belted rubber snow deflector
• Cast shoes
• Wire reinforced blade guides
- Structural steel construction with zinc prime & powder coated finish
- interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
- Interior height is 72″ high
- Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
- Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
- Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
- Rear corner posts are constructed of 7GA steel
- Roofs are constructed of 12GA steel with a 6″ peak
- Lockable security-style doors with 3″ x 3″ supports
- Standard 6″ steel ground rollers
