HITCH PLATE WITH PINTLE MOUNT FOR GMC? /CHEVY® /INTERNATIONAL® 2019+ 4500HD-6500HD (BOTTOM CHANNEL)
1809080
Ready-to-use with little or no fabrication needed.
For use with cab and chassis trucks with a nominal 34 in. frame width.
Corrosion-resistant black powder-coated finish.
Built-in trailer connector location.
Four pintle hook mounting positions.
Built-in ICC bumper protection.
Made in the USA.

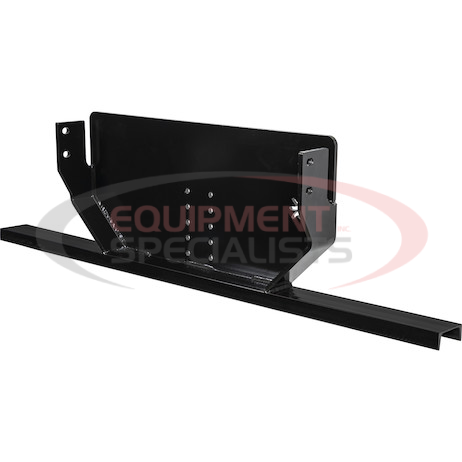

The Hitch Plate for Pintle Mounting with Bottom Channel from Buyers Products features multiple pintle hook mounting positions, two forged D-rings, and a pre-punched hole that fits most trailer electrical connectors.
The hitch plate is pre-fabricated and ready to use. The 1/2 in. thick hitch plate includes ICC bumper protection and features a black powder-coated finish for corrosion resistance. It should be both welded and bolted to the frame.
Available in several chassis-specific models (not for pickups). Please consult the vehicle/chassis owner's manual before installing. For use with cab and chassis trucks with a nominal 34 in. frame width.
Product Common Use: Upfitters
Share this product:
- Structural steel construction with zinc prime & powder coated finish
- interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
- Interior height is 72″ high
- Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
- Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
- Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
- Rear corner posts are constructed of 7GA steel
- Roofs are constructed of 12GA steel with a 6″ peak
- Lockable security-style doors with 3″ x 3″ supports
- Standard 6″ steel ground rollers
