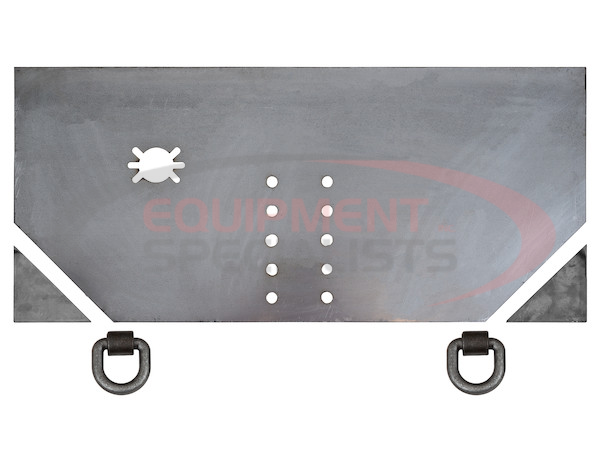

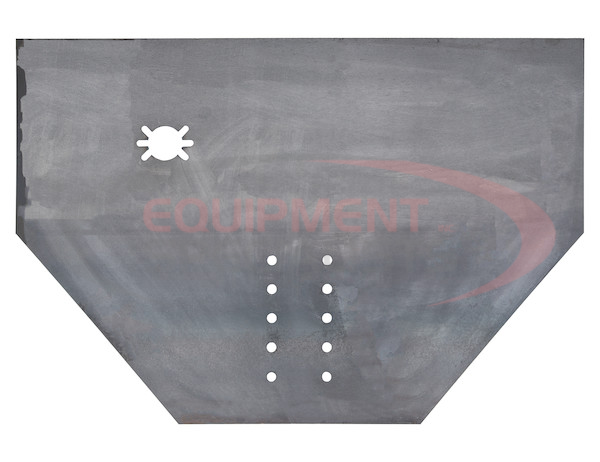

FABRICATORS HITCH PLATE 3/4 X 34-1/2 X 23-1/2 INCH
1809027A
Customize your hitch plate to meet your specific vehicle and needs.
Multiple pintle hook mounting positions.
Choose the thickness you need.
The Fabricators Hitch Plate from Buyers Products lets you build your hitch plate to meet your specific vehicle and needs.
Available in thicknesses of 1/2 in., 5/8 in., 3/4 in., or 1 in., the hitch plate features multiple pintle hook mounting positions and a pre-punched hole for electrical connectors. The hitch plate is welded to the frame.
Included are two D-rings and weld-on gussets for custom placement.
Hole Diameter:
.56” for 1809027A, 1809040, 1809042, 1809043
.812” for 1809029
Vertical Hole Spacing:
1.75” for 1809027A, 1809040, 1809042, 1809043
2.25” for 1809029
Horizontal Hole Spacing:
3.38” for 1809027A, 1809040, 1809042, 1809043,
4.5” for 1809029
Product Common Use: Dump Trucks
