UC/RT3, GM C4500, 03-11

LTA05150B
LTA05150B Boss Boss

705.20 705.2 USD 705.20

820.00


    This combination does not exist.

    Add to Cart


    Share this product:

    LTA05150B/LTA05100B

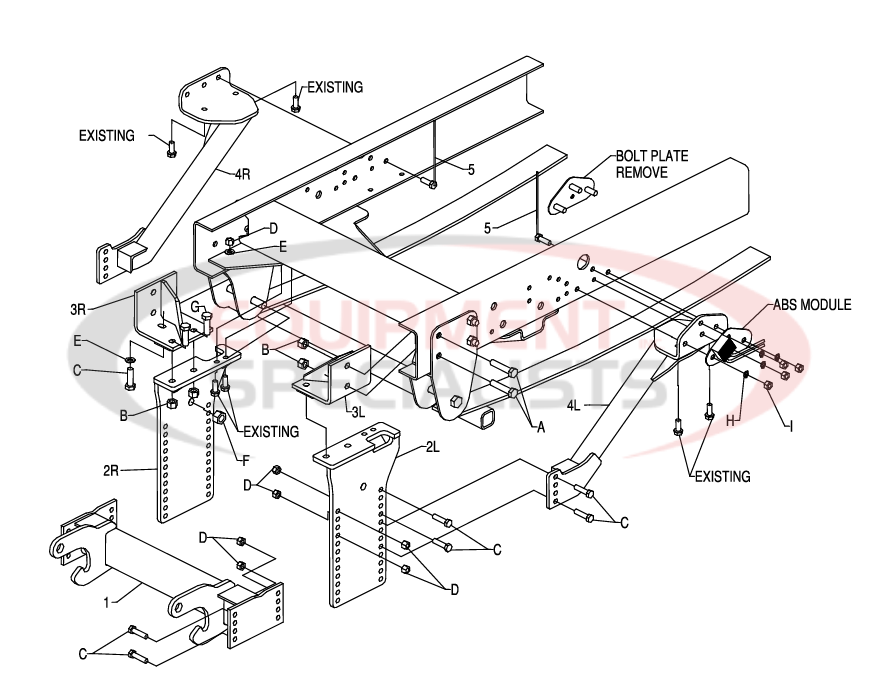

    LTA05150B/LTA05100B Breakdown Diagram
    1
    2L
    2R
    3L
    3R
    4L
    4R
    5
    5
    A
    B
    B
    C
    C
    C
    D
    D
    D
    D
    E
    E
    F
    G
    H
    I
    c

    • Structural steel construction with zinc prime & powder coated finish
    • interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
    • Interior height is 72″ high
    • Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
    • Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
    • Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
    • Rear corner posts are constructed of 7GA steel
    • Roofs are constructed of 12GA steel with a 6″ peak
    • Lockable security-style doors with 3″ x 3″ supports
    • Standard 6″ steel ground rollers
