BEDROCK MARBLE FLATBED

BR-MFB
BR-MFB

The most versatile black out truck bed on the market today that offers plenty of storage with our weatherproof toolboxes and four flush mount worklights.

• Available Lengths: 7', 8'6", 9'4", 11'4"
• 5 High intensity LED worklights for a combined 5,000 lumens - 2 on the rear, 2 in the tailgate and 1 cargo work light
• Innovative tail gate worklights offer 180-degree vertical worklight coverage
• 2 position worklight switch located in toolbox for security
• 8" Tail gate with paddle latch, slam closure and 2 integrated LED worklights
• 50" wide deck on single rear wheel and all cab and chassis
• 53" Wide deck on dual rear wheel take off beds
• 6 360-degree flush mount zinc plated tie downs, capacity 2,000 lb. each

Please contact us for more information about this product.

Request a Quote


Share this product:

Standard Features

Truck Bed

  • Full steel frame with 4'' & 3'' structural C-channel construction & 1/8'' steel diamond plate deck

  • Tapered corners allow for better turn radius when towing

  • Available for single & dual rear wheels

Powder Coating

  • Corrosion & UV Resistant

  • Glossy polyester finish with industry-leading adhesion & longevity

  • Impact & salt-spray tested for best performance

  • Application process developed specifically for BEDROCK - our entire line of products are shot blasted to raw, white metal before powder coating for maximum adhesion

LED Lighting

  • Lifetime LED lights that offer longevity & great visibility

  • DOT-approved

  • Back-up lights in headache rack can double as working lights

Wiring

  • 7-way & 4-way trailer wiring plug

  • Trailer wiring plug recessed next to license plate

  • Bed is pre-wired with sealed wiring harnesses to protect from moisture & prevent damage

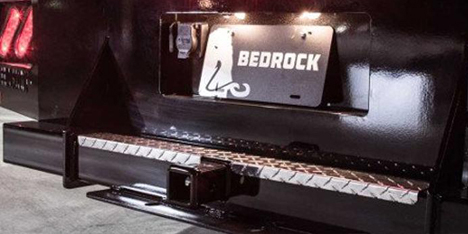

Receiver Hitch

  • Integrated 2'' receiver hitch rated at 18,000 lbs.

  • Uprights designed to enclose receiver hitch for greater safety
    * Maintains OEM Receiver Hitch for Ford 2017-current and Ram 2019-current *

Headache Rack

  • Patented adjustable headache rack provides the perfect fit for your truck

  • Window-cut design provides optimal visibility

  • Cutout allows for cargo lights and camera to meet DOT requirements

Gooseneck Hitch

  • B&W 2 5/16'' welded ball rated at 30,000 lbs.

  • Fully articulating lid can be removed

  • Accommodates additional trailer plug

  • Spring-loaded safety chain anchors reduce vibration & noise

Bed Options


Aluminum Trim Package

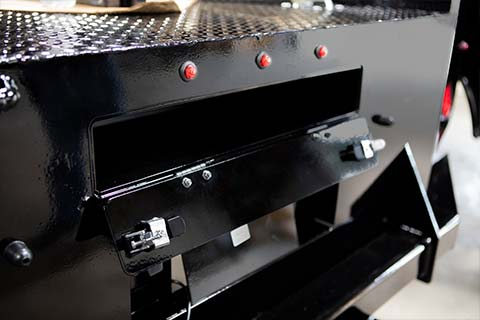

Rear Belly Box Compartment


Hauler Headache Rack with Vertical Posts


Optional 24,000 lb. Receiver Hitch Upgrade (not available for 7')


3/16" Diamond Plate Deck


B&W Turnoverball with 30,000 lb. Capacity (accepts 5th wheel)


No Gooseneck Box


Stainless Steel Fenders


60" Headache Rack (42" Standard)

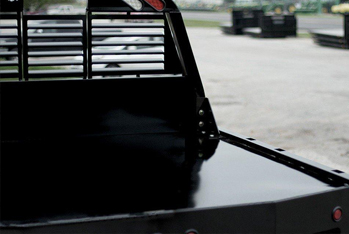

Smooth Plate 10-Guage Deck


  • Structural steel construction with zinc prime & powder coated finish
  • interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
  • Interior height is 72″ high
  • Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
  • Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
  • Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
  • Rear corner posts are constructed of 7GA steel
  • Roofs are constructed of 12GA steel with a 6″ peak
  • Lockable security-style doors with 3″ x 3″ supports
  • Standard 6″ steel ground rollers
