Waltco Liftgate PTN Series

WLGPTN
WLGPTN Waltco Liftgate Waltco Liftgate

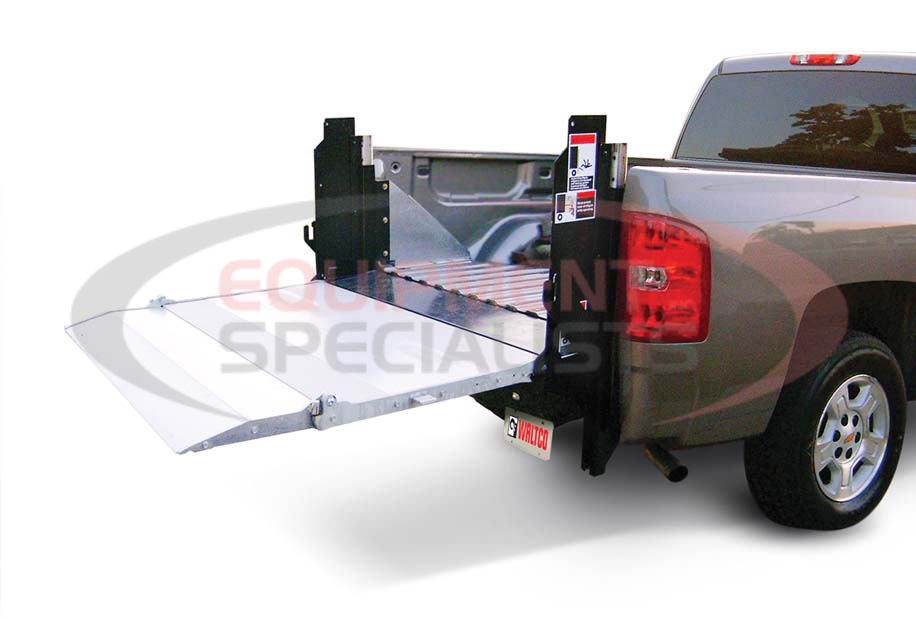

A durable railgate with rear frame vertical tracks, specifically designed for pick-up trucks and transporting bulky, top-heavy loads. Available in 1,250 lb. and 1,600 lb. lifting capacities.

Features vertical tracks that enable the platform to move via cables or chains in conjunction with a hydraulic cylinder (or two hydraulic cylinders directly attached to the platform) for maximum strength and performance. The vertical tracks are welded to the rear frame of the pick-up truck to ensure optimum safety.

Please contact us for more information about this product.

Request a Quote
Terms and Conditions
Share this product:


Platform TypesSteel
Platform Length Max (in)24"
Platform Width Max. (in)57"
Lifting Capacity (lbs)1250
Bed Height Max (in)38"
Bed Height Min (in)25"


Platform TypesSteel
Platform Length Max (in)36"
Platform Width Max. (in)57"
Lifting Capacity (lbs)1600
Bed Height Max (in)38"
Bed Height Min (in)25"


Platform TypesAlu
Platform Length Max (in)38"
Platform Width Max. (in)57"
Lifting Capacity (lbs)1250
Bed Height Max (in)38"
Bed Height Min (in)25"


Platform TypesAlu
Platform Length Max (in)44"
Platform Width Max. (in)57"
Lifting Capacity (lbs)1600
Bed Height Max (in)38"
Bed Height Min (in)25"

Entry-Level Pickup Truck Rail (up to 1,600 lb. Capacity

Entry-level pickup rail gate with a steel platform. Gates rides level with the truck side panels and chains are eliminated, meaning easier access to platform sides.

Galvanized Mainframe

WALTCO offers the option to galvanize the mainframe of the liftgate. This option extends lead-time by 8 weeks, but increases the overall life of your liftgate. When you galvanize your liftgate, you protect it from rust and harsh weather elements. This is a sound investment for the total life of the liftgate.

Easy-Fold

Equipped with torsion spring assist to make folding and unfolding the platform simple and smooth.

Bed Heights 25"-38"

Accommodates bed heights from 25"-38" to fit most pickup trucks.

Safety+ Features

Bult-in tow deflector, anti-skid treadplate platform, fewer pinch points, and level ride provice premium safety for operator.

Powder Coat Finish

Powder coat finish on key liftgate components produces a high-quality, corrosion resistant finish.

Above Floor Travel

Above floor travel


  • Structural steel construction with zinc prime & powder coated finish
  • interior body widths are 88″(EXT) & 87″(INT) and exterior width is 96″
  • Interior height is 72″ high
  • Floors are constructed of 10GA steel sheet with 3″ structural channel on 16″ centers
  • Posts are constructed of 12GA steel sheet; exterior posts are 5″ formed posts on 36″-48″ centers, Interior posts are 3″ structural channel on 16″ centers
  • Top rails are constructed of 3″ x 3″ x 1/8″ square steel tubing
  • Rear corner posts are constructed of 7GA steel
  • Roofs are constructed of 12GA steel with a 6″ peak
  • Lockable security-style doors with 3″ x 3″ supports
  • Standard 6″ steel ground rollers
